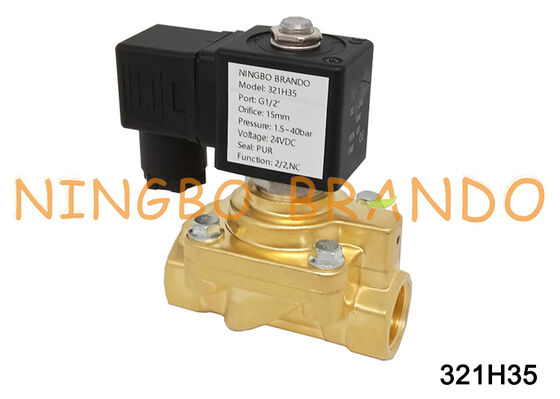

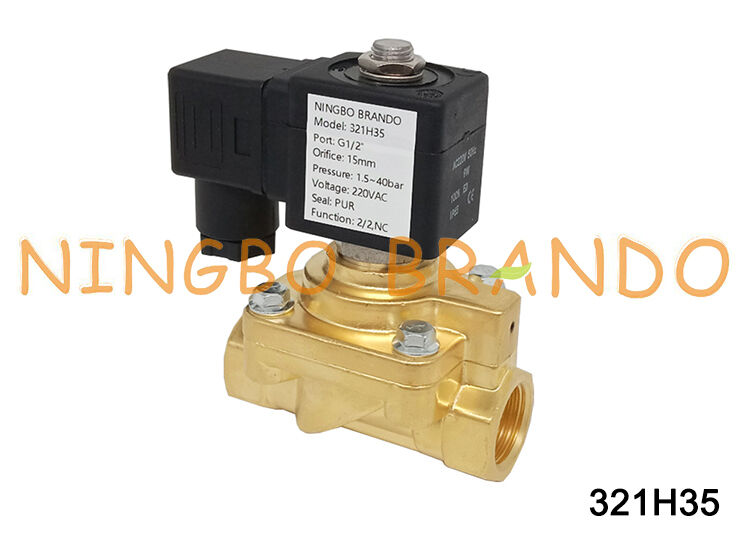

Parker Type 321H35 2-Way Normally Closed G1/2'' 40 Bar Pneumatic Solenoid Valve

Parker Type 321H35 2-Way Normally Closed G1/2'' 40 Bar Pneumatic Solenoid Valve

Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, laser cutting machines, air compressors, etc

Video of 321H35, 321H36:

Technical Data:​

Main Dimension:

BRANDO Solenoid Valve Factory Production Video:
